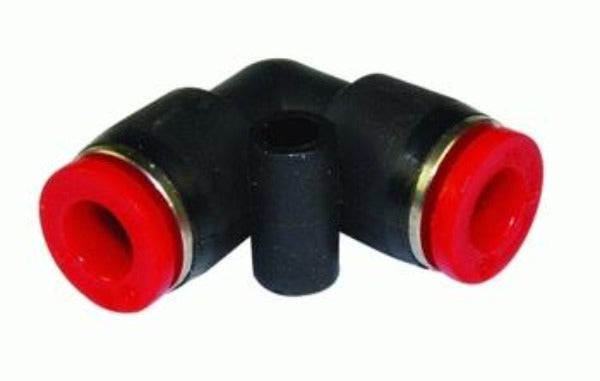

Pneufit C Elbow Union (Equal) Pneufit C Elbow Union (Equal)

Pneufit C push in fittings represent one of the industries largest ranges of industrial fittings, with more than 1,000 shapes...

O/D Tube

Pneufit C push in fittings represent one of the industries largest ranges of industrial fittings, with more than 1,000 shapes and sizes

O/D Tube

4
C00400400
6
C00400600
8
C00400800
10
C00401000
12
C00401200
16
C00401600


  • Assembly times can be reduced to the minimum by using the parallel threaded versions, or choose taper to ensure perfect sealing under less than ideal port conditions
  • Body material is either PBT or nickel-plated brass offering good resistance to corrosion or contamination, and all components are retained within the body to make a perfect seal every time
  • In addition to standard shapes, the range also includes manifolds, banjo flow regulators isolating valves and other items to offer maximum benefit from using standard widely available parts



Technical Data

Medium:

Compressed air

Operating pressure:

750mm Hg to 10 Bar

Ambient temperature:

-20°C…+60°C

Air supply must be dry enough to avoid ice formation at temperatures below +2°C

Tubing:

Nylon 11 or 12, polyurethane 85 to 98



Materials

Body:

PBT

Seals:

NBR (silicone free) u-packing and O-rings

Threaded bodies:

Nickel plated brass

Release sleeve and backing ring:

POM

Grab-ring:

Stainless steel

Collar:

Nickel plated brass

Threaded sealant:

Chemitech G-175L
