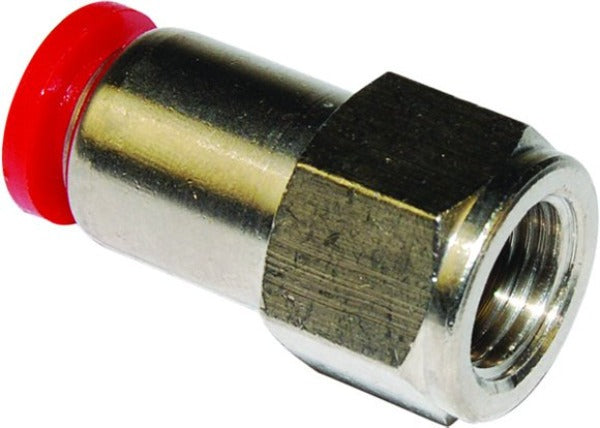

Pneufit C Straight Adaptor (Female Thread) Pneufit C Straight Adaptor (Female Thread)
Pneufit C push in fittings represent one of the industries largest ranges of industrial fittings, with more than 1,000 shapes...
Pneufit C push in fittings represent one of the industries largest ranges of industrial fittings, with more than 1,000 shapes and sizes
| Thread | O/D Tube | |
| M5 | 4 | C02260405 |
| G1/8 | 4 | C02260418 |
| G1/8 | 6 | C02260618 |
| G1/8 | 8 | C02260818 |
| G1/8 | 10 | C02261018 |
| G1/4 | 4 | C02260428 |
| G1/4 | 6 | C02260628 |
| G1/4 | 8 | C02260828 |
| G1/4 | 10 | C02261028 |
| G1/4 | 12 | C02261228 |
| G3/8 | 4 | C02260438 |
| G3/8 | 6 | C02260638 |
| G3/8 | 8 | C02260838 |
| G3/8 | 10 | C02261038 |
| G3/8 | 12 | C02261238 |
| G1/2 | 8 | C02260848 |
| G1/2 | 10 | C02261048 |
| G1/2 | 12 | C02261248 |
- Assembly times can be reduced to the minimum by using the parallel threaded versions, or choose taper to ensure perfect sealing under less than ideal port conditions
- Body material is either PBT or nickel-plated brass offering good resistance to corrosion or contamination, and all components are retained within the body to make a perfect seal every time
- In addition to standard shapes, the range also includes manifolds, banjo flow regulators isolating valves and other items to offer maximum benefit from using standard widely available parts
Technical Data
Medium:
Compressed air
Operating pressure:
750mm Hg to 10 Bar
Ambient temperature:
-20°C…+60°C
Air supply must be dry enough to avoid ice formation at temperatures below +2°C
Tubing:
Nylon 11 or 12, polyurethane 85 to 98
Materials
Body:
PBT
Seals:
NBR (silicone free) u-packing and O-rings
Threaded bodies:
Nickel plated brass
Release sleeve and backing ring:
POM
Grab-ring:
Stainless steel
Collar:
Nickel plated brass
Threaded sealant:
Chemitech G-175L
