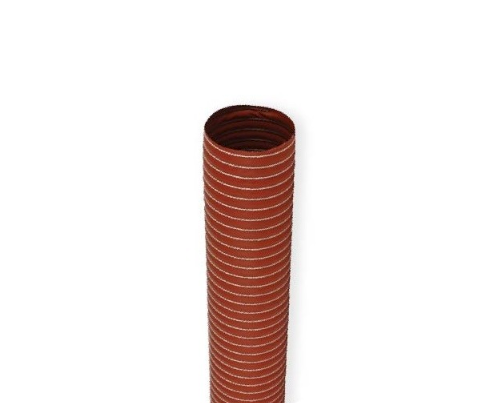

High Temperature Silicone Ducting 1 PLY High Temperature Silicone Ducting 1 PLY
Type : Silicone Ducting Single PLY Application: - flexible hose/ ducting for hot and cold gases- granulate/ plastic dryer, hot air...
Type : Silicone Ducting Single PLY
Application:
- flexible hose/ ducting for hot and cold gases
- granulate/ plastic dryer, hot air dryer
- film blowing machine, cooling air at the extrusion tool
- air supply: UV dryer, IR dryer
- clean room ventilation, semiconductor production machine
Properties:
- fibre reinforced
- highly flexible
- very good heat resistance
- conforms to RoHS guideline
Temperature Range:
-70°C to 260°C
short time to 280°C
Design, Material
Silicon hose
- spring steel wire
- fabric-reinforced tape, wall: Silicon coated glass fabric
- cord as reinforcement
| Part Number | Name | Inner Diameter (mm) |
Outer Diameter (mm) |
Bending radius (mm) |
Stock Dimensions (m) |
|---|---|---|---|---|---|
| 35 9251 | SIL 1 SINGLE PLY SILICONE DUCT 51MM | 51 | 55 | 30 | 4 |
| 35 9264 | SIL 1 SINGLE PLY SILICONE DUCT 64MM | 64 | 67 | 36 | 4 |
