Orinoco Sandblast Orinoco Sandblast
Type : Rubber - Shot & Sandblast Hose Standards: abrasion loss of the tube according to ISO 4649: 70+/- 5mm3 Application: abrasion resistant...
Type : Rubber - Shot & Sandblast Hose
Standards: abrasion loss of the tube according to ISO 4649: 70+/- 5mm3
Application: abrasion resistant softwall hose, used for the delivery of sand or cast steel shot. It is manufactured with an antistatic rubber compound.
Temperature: from -40°C (-40°F) to +70°C (+158°F).

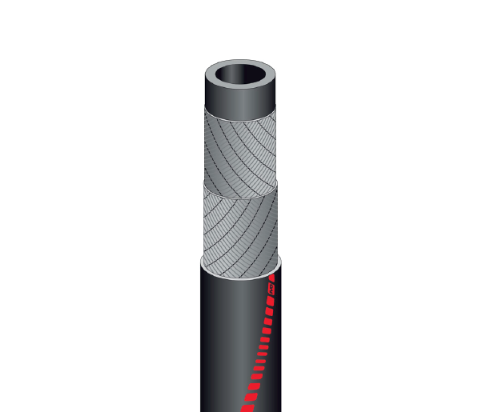

Construction Tube: black, smooth, antistatic SBR/NR rubber, abrasion resistant.
Reinforcement: high strength synthetic cord.
Cover: black, smooth, (wrapped finish) antistatic SBR/NR rubber, abrasion resistant.
Brand : IVG
Also available upon request: 1.Different diameters 2.Different working pressures 3.Orinoco/2000 with abrasion loss of the tube 50+/- 5mm3 according to ISO 4649.
| Name | Inner Diameter (mm) |
Outer Diameter (mm) |
Working pressure (bar) | Burst pressure (bar) | Length max (m) |
|---|---|---|---|---|---|
| Orinoco Sandblast Hose L/Wall 13x28 | 13 | 28 | 10 | 30 | 120 |
| Orinoco Sandblast Hose 13mm x34 | 13 | 34 | 10 | 30 | 120 |
| Orinoco Sandblast Hose 19mmx38 | 19 | 38 | 10 | 30 | 120 |
| Orinoco Sandblast Hose L/Wall 19x34 | 19 | 34 | 10 | 30 | 120 |
| Orinoco Sandblast Hose L/Wall 25x40 | 25 | 40 | 10 | 30 | 120 |
| Orinoco Sandblast Hose 25mmx48 | 25 | 48 | 10 | 30 | 120 |
| Orinoco Sandblast L/Wall 32mmx48 | 32 | 48 | 10 | 30 | 120 |
| Orinoco Sandblast Hose 32mmx55 | 32 | 55 | 10 | 30 | 120 |
| Orinoco SandblastHP L.Wall 32x48 HP | 32 | 48 | 10 | 30 | 120 |
| Orinoco Sandblast Hose 38mmx55 | 38 | 55 | 10 | 30 | 120 |
| Orinoco Sandblast Hose 38mmx60 | 38 | 60 | 10 | 30 | 120 |
| Orinoco Sandblast Hose 51mmx73 | 51 | 73 | 10 | 30 | 120 |
Type : Rubber - Shot & Sandblast Hose
Standards: abrasion loss of the tube according to ISO 4649: 70+/- 5mm3
Application: abrasion resistant softwall hose, used for the delivery of sand or cast steel shot. It is manufactured with an antistatic rubber compound.
Temperature: from -40°C (-40°F) to +70°C (+158°F).
Construction Tube: black, smooth, antistatic SBR/NR rubber, abrasion resistant.
Reinforcement: high strength synthetic cord.
Cover: black, smooth, (wrapped finish) antistatic SBR/NR rubber, abrasion resistant.
Brand : IVG
Also available upon request: 1.Different diameters 2.Different working pressures 3.Orinoco/2000 with abrasion loss of the tube 50+/- 5mm3 according to ISO 4649.
| Name | Inner Diameter (mm) |
Outer Diameter (mm) |
Working pressure (bar) | Burst pressure (bar) | Length max (m) |
|---|---|---|---|---|---|
| Orinoco Sandblast Hose L/Wall 13x28 | 13 | 28 | 10 | 30 | 120 |
| Orinoco Sandblast Hose 13mm x34 | 13 | 34 | 10 | 30 | 120 |
| Orinoco Sandblast Hose 19mmx38 | 19 | 38 | 10 | 30 | 120 |
| Orinoco Sandblast Hose L/Wall 19x34 | 19 | 34 | 10 | 30 | 120 |
| Orinoco Sandblast Hose L/Wall 25x40 | 25 | 40 | 10 | 30 | 120 |
| Orinoco Sandblast Hose 25mmx48 | 25 | 48 | 10 | 30 | 120 |
| Orinoco Sandblast L/Wall 32mmx48 | 32 | 48 | 10 | 30 | 120 |
| Orinoco Sandblast Hose 32mmx55 | 32 | 55 | 10 | 30 | 120 |
| Orinoco SandblastHP L.Wall 32x48 HP | 32 | 48 | 10 | 30 | 120 |
| Orinoco Sandblast Hose 38mmx55 | 38 | 55 | 10 | 30 | 120 |
| Orinoco Sandblast Hose 38mmx60 | 38 | 60 | 10 | 30 | 120 |
| Orinoco Sandblast Hose 51mmx73 | 51 | 73 | 10 | 30 | 120 |
