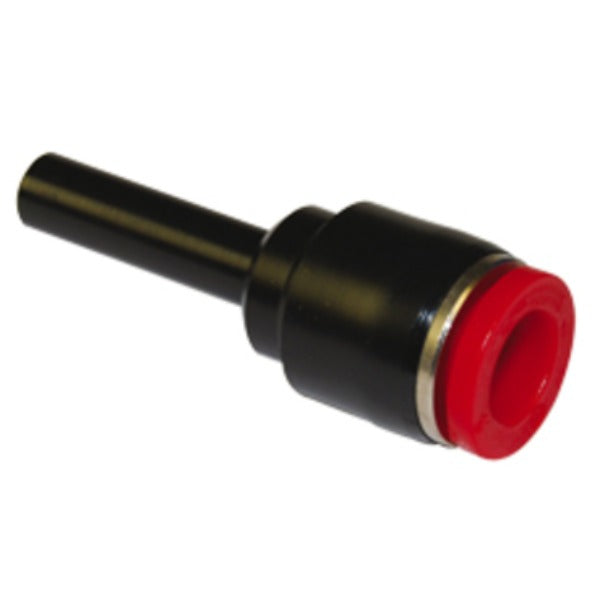

Pneufit C Stem Reducer Pneufit C Stem Reducer
Pneufit C push in fittings represent one of the industries largest ranges of industrial fittings, with more than 1,000 shapes...
Pneufit C push in fittings represent one of the industries largest ranges of industrial fittings, with more than 1,000 shapes and sizes
| O/D Stem | O/D Tube | |
| 6 | 4 | C00230604 |
| 8 | 4 | C00230804 |
| 8 | 6 | C00230806 |
| 10 | 6 | C00231006 |
| 10 | 8 | C00231008 |
| 12 | 6 | C00231206 |
| 12 | 8 | C00231208 |
| 12 | 10 | C00231210 |
| 16 | 12 | C00231612 |
- Assembly times can be reduced to the minimum by using the parallel threaded versions, or choose taper to ensure perfect sealing under less than ideal port conditions
- Body material is either PBT or nickel-plated brass offering good resistance to corrosion or contamination, and all components are retained within the body to make a perfect seal every time
- In addition to standard shapes, the range also includes manifolds, banjo flow regulators isolating valves and other items to offer maximum benefit from using standard widely available parts
Technical Data
Medium:
Compressed air
Operating pressure:
750mm Hg to 10 Bar
Ambient temperature:
-20°C…+60°C
Air supply must be dry enough to avoid ice formation at temperatures below +2°C
Tubing:
Nylon 11 or 12, polyurethane 85 to 98
Materials
Body:
PBT
Seals:
NBR (silicone free) u-packing and O-rings
Threaded bodies:
Nickel plated brass
Release sleeve and backing ring:
POM
Grab-ring:
Stainless steel
Collar:
Nickel plated brass
Threaded sealant:
Chemitech G-175L
