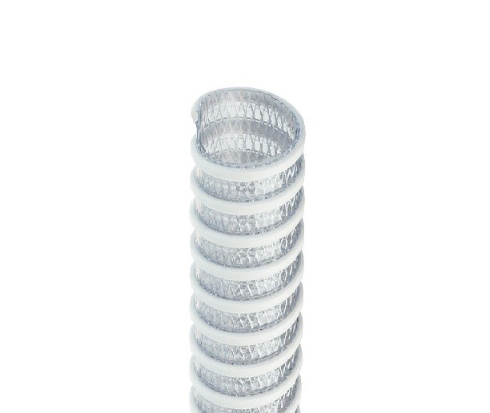

Kanaline FW PVC Foodgrade S&D Hose Kanaline FW PVC Foodgrade S&D Hose
Type: PVC Heavy-duty food grade suction and discharge hose Temp. Range: -13°F to 140°F Applications: Heavy-duty food grade suction and discharge hose for...
Type: PVC Heavy-duty food grade suction and discharge hose
Temp. Range: -13°F to 140°F
Applications: Heavy-duty food grade suction and discharge hose for bottling, wine making, canning, dairy, brewing and liquid foods
Construction: Produced entirely of compounds in compliance with FDA and 3-A nontoxic specifications, flexible PVC, rigid PVC helix, synthetic braiding, smooth bore, corrugated O.D.
Features: Lightweight and flexible. External helix provides for easy drag. Rated for both suction and discharge. Clear sidewall permits visual check of material flow.
Note: Banding coil must be used for all sizes.
Industrial Applications: Food, Wine, Dairy
| Name | Inner Diameter (inch) |
Outer Diameter (inch) |
Working pressure (72°F, PSI) |
Bending radius (72°F, inches) |
Vacuum (72°F, In Hg) |
|---|---|---|---|---|---|
| Kanaline FW PVC Foodgrade S/D Hose 38mm | 1-1/2 | 2.1 | 110 | 2.5 | 28 |
| Kanaline FW PVC Foodgrade S/D Hose 51mm | 2 | 2.6 | 100 | 4.5 | 28 |
| Kanaline FW PVC Foodgrade S/D Hose 76mm | 3 | 3.7 | 100 | 6.3 | 28 |
