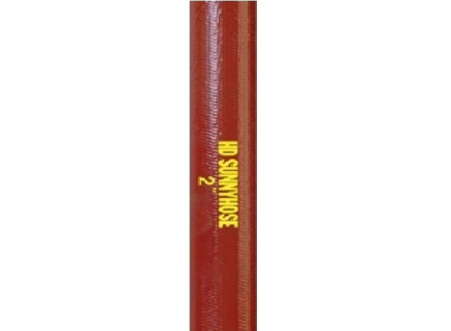

Sunny PVC Layflat Heavy Duty Sunny PVC Layflat Heavy Duty
Type: PVC Layfalt Hose This is a tough, abrasion-resistant hose, with working pressure in the range of 5-10.5kg/cm2. The Heavy duty...
Type: PVC Layfalt Hose
This is a tough, abrasion-resistant hose, with working pressure in the range of 5-10.5kg/cm2. The Heavy duty Sunnyhose is well suited for water drainage at open pit mining and at civil engineering/dam construction sites in mountains or other areas where water must be moved to significantly higher or lower elevations. This hose has excellent abrasion resistance.
* Standard length: 100m
* Working pressure: 20°C
| Name | Inner Diameter (mm) |
Wall Thickness (mm) |
Weight nominal (g/m) |
Working pressure (kg/cm2) |
|---|---|---|---|---|
| Sunny PVC Layflat Heavy Duty Red 38mm | 38 | 1.90 | 290 | 10.5 |
| Sunny PVC Layflat Heavy Duty Red 51mm | 51 | 2.05 | 420 | 10.5 |
| Sunny PVC Layflat Heavy Duty Red 64mm | 64 | 2.15 | 540 | 10.5 |
| Sunny PVC Layflat Heavy Duty Red 76mm | 76 | 2.25 | 660 | 10.5 |
| Sunny PVC Layflat Heavy Duty Red 102mm | 102 | 2.55 | 1,000 | 9.0 |
| Sunny PVC Layflat Heavy Duty Red 152mm | 152 | 2.95 | 1,680 | 7.0 |
| Sunny PVC Layflat Heavy Duty Red 203mm | 203 | 2.95 | 2,200 | 5.0 |
