Pharmapress Braided High Temp Food Grade Pharmapress Braided High Temp Food Grade

Features: flexible hose made by thermoplastic rubber and reinforced by high tenacity polyester yarn. Inside and outside completely smmoth to enhance...

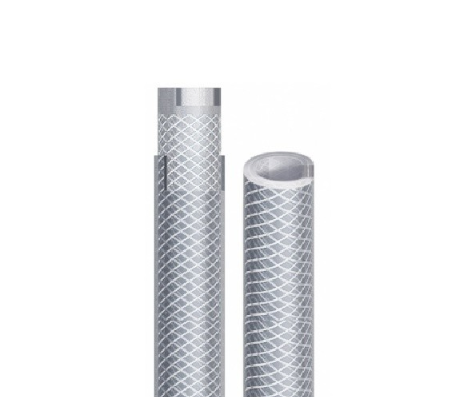

Features: flexible hose made by thermoplastic rubber and reinforced by high tenacity polyester yarn. Inside and outside completely smmoth to enhance flow properties and to allow easy cleaning and sterilization processes. Developed to be used in the pharmaceutical industry according to USP CALSS VI. Food grade according to the european 2002/72/CE norm, classes A, B, C, D (fatty food and milky products); food grade also accroding to FDA regulations (Title 21 CFR 177.1680 e 177.2600). Odorless, it doesn't change the organoleptical properties of the delivered materials. Very good hydrolysis and microbes resistance. Flexible and not heavy though its wall thickness. Good resistance to mineral oils and chemicals, excellent resistance to ozone, weather and aging. Halogen free and conform to RoHS regulations. Instead of a conventional silicone hose, Pharma press do not need any vulcanization process, allowing to save energy sources and to limit CO2 emissions in the atmosphere.

The hose can be sterilized in autoclave at 121°C.

Temperature range: -30°C + 125°C

Colour: transparent with white yarn

Application: delivery of liquids, substances and fluid in the pharmaceutical and cosmetics industries. Delivery of food materials, even if fatty. For drinks like wine, vinegar, spirits ith max 50% alcohol content.



Name  Inner Diameter
(mm)
 Outer Diameter
(mm)
Work. pressure
(bar)
Bending Radius
(mm)
Coil length
(m)
Pharmapress Braided 13mm  13  20.1 11 60 100
Pharmapress Braided 16mm  16  24.4 10 80 50
Pharmapress Braided 20mm  20  27.9  9 100 50
Pharmapress Braided 25mm  25  34.5  7 130 50

Features: flexible hose made by thermoplastic rubber and reinforced by high tenacity polyester yarn. Inside and outside completely smmoth to enhance flow properties and to allow easy cleaning and sterilization processes. Developed to be used in the pharmaceutical industry according to USP CALSS VI. Food grade according to the european 2002/72/CE norm, classes A, B, C, D (fatty food and milky products); food grade also accroding to FDA regulations (Title 21 CFR 177.1680 e 177.2600). Odorless, it doesn't change the organoleptical properties of the delivered materials. Very good hydrolysis and microbes resistance. Flexible and not heavy though its wall thickness. Good resistance to mineral oils and chemicals, excellent resistance to ozone, weather and aging. Halogen free and conform to RoHS regulations. Instead of a conventional silicone hose, Pharma press do not need any vulcanization process, allowing to save energy sources and to limit CO2 emissions in the atmosphere.

The hose can be sterilized in autoclave at 121°C.

Temperature range: -30°C + 125°C

Colour: transparent with white yarn

Application: delivery of liquids, substances and fluid in the pharmaceutical and cosmetics industries. Delivery of food materials, even if fatty. For drinks like wine, vinegar, spirits ith max 50% alcohol content.



Name  Inner Diameter
(mm)
 Outer Diameter
(mm)
Work. pressure
(bar)
Bending Radius
(mm)
Coil length
(m)
Pharmapress Braided 13mm  13  20.1 11 60 100
Pharmapress Braided 16mm  16  24.4 10 80 50
Pharmapress Braided 20mm  20  27.9  9 100 50
Pharmapress Braided 25mm  25  34.5  7 130 50
