Plutone BIO Wire PVC Suction Plutone BIO Wire PVC Suction
Type: PVC Suction - Clear Suction Hose with Wire, Food Grade Colour: Transparent Temperature: -10°C + 60°C Features: flexible hose made with a revolutionary...
Type: PVC Suction - Clear Suction Hose with Wire, Food Grade
Colour: Transparent
Temperature: -10°C + 60°C
Features: flexible hose made with a revolutionary BIOLOGICAL PVC, coming almoust totally from natural renewable sources. With steel spiral. Inside and outside completely smooth. Furthermore the hose is compliant with FDA regulations. Completely free of phthalates and other sintetic plasticizers. The material allows to save CO2 emissions. Resistant to atmospherical agents and to a lot of chemical substances.

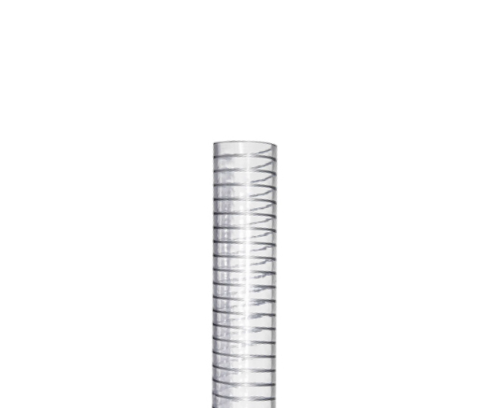

Transparent hose produced with a special bio-based compound, obtained from natural energy sources, which production allows to save CO2 emissions and reinforced with steel spiral. Ideal solution for suction and delivery of food liquids, beverages, fruit juices, wine and liquors with up to 50% alcohol concentration, as well as for the passage of milk and dairy products, according to FDA CFR. 21 (Item 176.170) and to Reg. EU 10/2011 (classes A, B, C, D1). It is often used for filling machines and dispensers
| Name | Inner Diameter (mm) |
Outer Diameter (mm) |
Working pressure (bar) | Burst pressure (bar) | Weight nominal (g/m) | Bending radius (mm) | Vacuum mH2O | Coil Length (m) |
|---|---|---|---|---|---|---|---|---|
| Plutone BIO Wire Suction 6mm | 6 | 12.2 | 5 | 25 | 130 | 30 | 9.5 | 60 |
| Plutone BIO Wire Suction 8mm | 8 | 14.2 | 5 | 25 | 160 | 40 | 9.5 | 60 |
| Plutone BIO Wire Suction 10mm | 10 | 16.0 | 7 | 35 | 185 | 50 | 8.5 | 60 |
| Plutone BIO Wire Suction 13mm | 13 | 19 | 7 | 35 | 220 | 60 | 8.5 | 60 |
| Plutone BIO Wire Suction 16mm | 16 | 22.4 | 7 | 35 | 275 | 70 | 8.5 | 60 |
| Plutone BIO Wire Suction 19mm | 19 | 27 | 6 | 30 | 355 | 90 | 8.5 | 60 |
| Plutone BIO Wire Suction 25mm | 25 | 33 | 6 | 30 | 515 | 110 | 8.5 | 60 |
| Plutone BIO Wire Suction 32mm | 32 | 40.4 | 5 | 25 | 665 | 140 | 8.5 | 60 |
| Plutone BIO Wire Suction 38mm | 38 | 47.0 | 5 | 25 | 805 | 170 | 8.5 | 30 |
| Plutone BIO Wire Suction 45mm | 45 | 54.8 | 4 | 20 | 1135 | 200 | 8 | 30 |
| Plutone BIO Wire Suction 51mm | 51 | 60.8 | 4 | 20 | 1295 | 230 | 8 | 30 |
| Plutone BIO Wire Suction 64mm | 64 | 74.8 | 3.5 | 17.5 | 1830 | 280 | 8 | 30 |
| Plutone BIO Wire Suction 76mm | 76 | 88.2 | 3.5 | 17.5 | 2275 | 340 | 7 | 30 |
| Plutone BIO Wire Suction 102mm | 102 | 115 | 2 | 10 | 3490 | 460 | 7 | 20 |
| Plutone BIO Wire Suction 125mm | 125 | 114.4 | 1.2 | 6 | 5500 | 640 | 9 | 20 |
| Plutone BIO Wire Suction 152mm | 152 |
