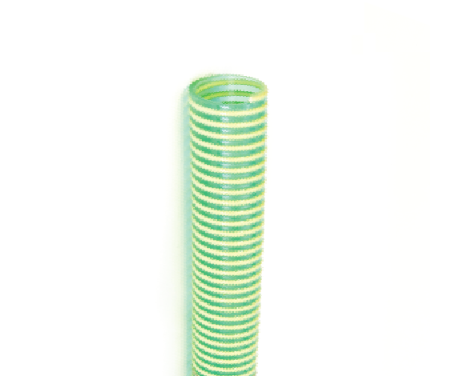

Saturno Light Duty Green PVC S&D Saturno Light Duty Green PVC S&D
Type: PVC - General S&D Hose Colour: green with cream helix. Temperature range: - 10°C + 60°C / + 14°F + 140°F. Features:...
Type: PVC - General S&D Hose
Colour: green with cream helix.
Temperature range: - 10°C + 60°C / + 14°F + 140°F.
Features:
Pvc hose reinforced with an anti-shock rigid Pvc spiral.
Inside surface smooth, light corrugation outside.
Strong and flexible, resistant to crushing, abrasion, atmospherical agents and most chemicals.
Applications: excellent for suction in general, particularly suitable to be used on slurry machines.
Can be manufactured antistatic upon request
| Name | Inner Diameter (mm) |
Working pressure (bar) |
Burst pressure (bar) |
Weight nominal (g/m) |
Bending radius (mm) |
Vacuum (mH2O) |
Length max (m) |
|---|---|---|---|---|---|---|---|
| Saturno Light Duty Green S&D 19mm | 19 | 5 | 15 | 210 | 110 | 6 | 50 |
| Saturno Light Duty Green S&D 25mm | 25 | 5 | 15 | 280 | 140 | 6 | 50 |
| Saturno Light Duty Green S&D 32mm | 32 | 5 | 15 | 370 | 180 | 6 | 50 |
| Saturno Light Duty Green S&D 38mm | 38 | 5 | 15 | 470 | 210 | 6 | 50 |
| Saturno Light Duty Green S&D 51mm | 51 | 5 | 15 | 720 | 270 | 6 | 50 |
| Saturno Light Duty Green S&D 64mm | 64 | 5 | 15 | 920 | 350 | 6 | 50 |
| Saturno Light Duty Green S&D 76mm | 76 | 5 | 15 | 1180 | 500 | 6 | 50 |
| Saturno Light Duty Green S&D 102mm | 102 | 5 | 15 | 2260 | 710 | 6 | 50 |
Type: PVC - General S&D Hose
Colour: green with cream helix.
Temperature range: - 10°C + 60°C / + 14°F + 140°F.
Features:
Pvc hose reinforced with an anti-shock rigid Pvc spiral.
Inside surface smooth, light corrugation outside.
Strong and flexible, resistant to crushing, abrasion, atmospherical agents and most chemicals.
Applications: excellent for suction in general, particularly suitable to be used on slurry machines.
Can be manufactured antistatic upon request
| Name | Inner Diameter (mm) |
Working pressure (bar) |
Burst pressure (bar) |
Weight nominal (g/m) |
Bending radius (mm) |
Vacuum (mH2O) |
Length max (m) |
|---|---|---|---|---|---|---|---|
| Saturno Light Duty Green S&D 19mm | 19 | 5 | 15 | 210 | 110 | 6 | 50 |
| Saturno Light Duty Green S&D 25mm | 25 | 5 | 15 | 280 | 140 | 6 | 50 |
| Saturno Light Duty Green S&D 32mm | 32 | 5 | 15 | 370 | 180 | 6 | 50 |
| Saturno Light Duty Green S&D 38mm | 38 | 5 | 15 | 470 | 210 | 6 | 50 |
| Saturno Light Duty Green S&D 51mm | 51 | 5 | 15 | 720 | 270 | 6 | 50 |
| Saturno Light Duty Green S&D 64mm | 64 | 5 | 15 | 920 | 350 | 6 | 50 |
| Saturno Light Duty Green S&D 76mm | 76 | 5 | 15 | 1180 | 500 | 6 | 50 |
| Saturno Light Duty Green S&D 102mm | 102 | 5 | 15 | 2260 | 710 | 6 | 50 |
